Inspect the Router Tree

The Router Tree tab lets you visualize the routing tree of your application. You can explore how routes are nested and view details about specific routes.

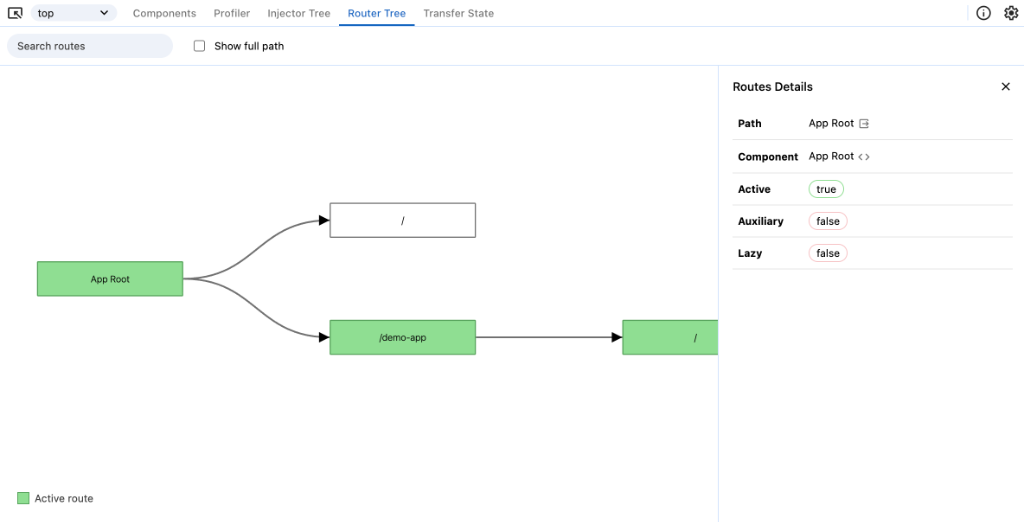

A screenshot of the 'Router Tree' tab in Angular DevTools showing a tree of configured routes. The active routes are highlighted in green, while inactive ones are white.

View route details

When you select a specific route in the tree, Angular DevTools displays its properties in the sidebar on the right. This information includes:

  • Path: The URL path for the route. If the route uses a custom URL matcher, DevTools displays the Matcher instead.
  • Component: The component rendered for this route. If the route is a redirect, DevTools displays the Redirect to target instead.
  • Path Match: The path matching strategy (prefix or full), if configured.
  • Data: Static data associated with the route, displayed as a JSON tree.
  • Resolvers: Route resolvers, displayed as key-value pairs.
  • Guards: Any guards configured on the route, grouped by type — canActivate, canActivateChild, canDeactivate, and canMatch.
  • Providers: Route-level providers, if configured.
  • Title: The route title, if configured.
  • RunGuardsAndResolvers: The re-run strategy for guards and resolvers, if configured.
  • Active: Whether this route is currently active.
  • Auxiliary: Indicates if the route is an auxiliary route (e.g., in a named outlet).
  • Lazy: Indicates if the route is lazily loaded.

Note: Properties like Path Match, Data, Resolvers, Guards, Providers, Title, and RunGuardsAndResolvers only appear in the sidebar when they are configured on the selected route.

You can easily trigger navigation directly from the DevTools. While inspecting a route's details in the right sidebar, click on the Navigate icon next to the path string. This triggers the Angular router to navigate to that URL in your application.

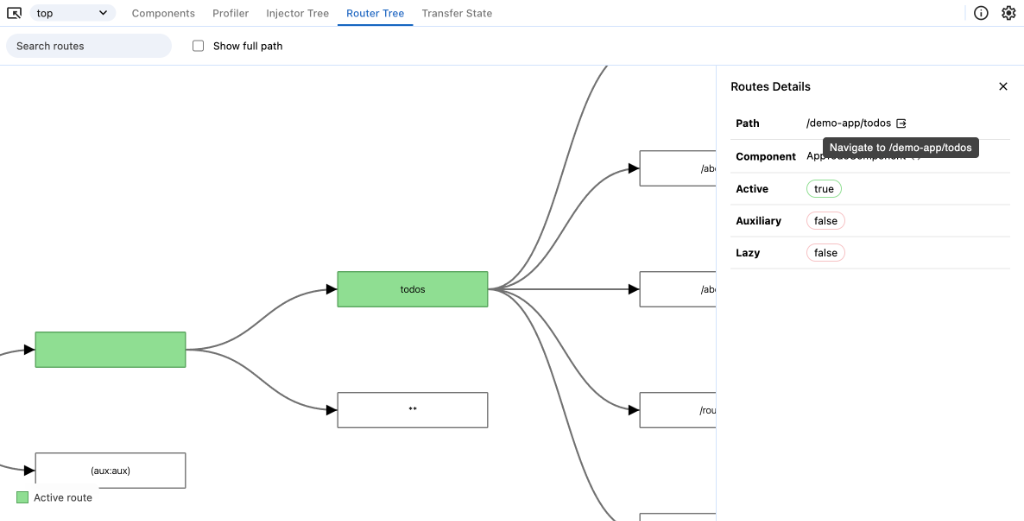

A screenshot showing the 'Navigate to' tooltip on the route path in the 'Routes Details' sidebar.
